| Model |

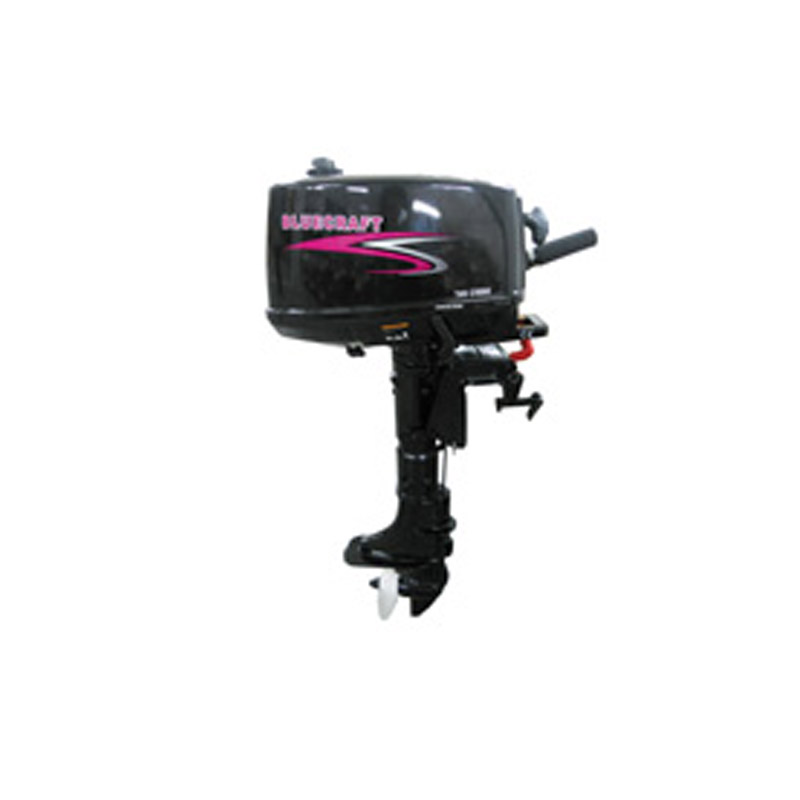

Bluecraft T5S |
| Length mm(in.) |
677 (26.7) |
| Width mm (in.) |
322 (12.7) |
| Height mm (in.) |
1011 (39.8) |
| Transom Height mm (in.) |
440 (17.30) |
| Net Weight (kgs) |
21 |
| Full throttle operating range (r/min) |
4500-5500 |
| Maximum output (kw(hp)@r/min) |
3.7(5)@5000 |
| Idling Speed (r/min) |
1100-1200 |
| Engine type |
2-Stroke |
| Cylinder quatity |
1 |
| Displacement (cm³) |
102 |
| Bore x Stroke (mm (in.)) |
52×45(2.05 x 1.77) |
| Control system |
Tiller |
| Starting system |
Manual |
| Gear positions |
Forward-neutral-reverse |
| Gear ratio |
2.08(27/13) |
| Trim and tilt system |
Manual Tilt |
| Fuel tank volume (L) |
2.8 |
| Engine fuel ratio |
Gasoline : engine oil =50:1 |
| Gear oil (cm³) |
320 |
| Propeller spec (in) |
3-7 1/7″ x 7″ |
