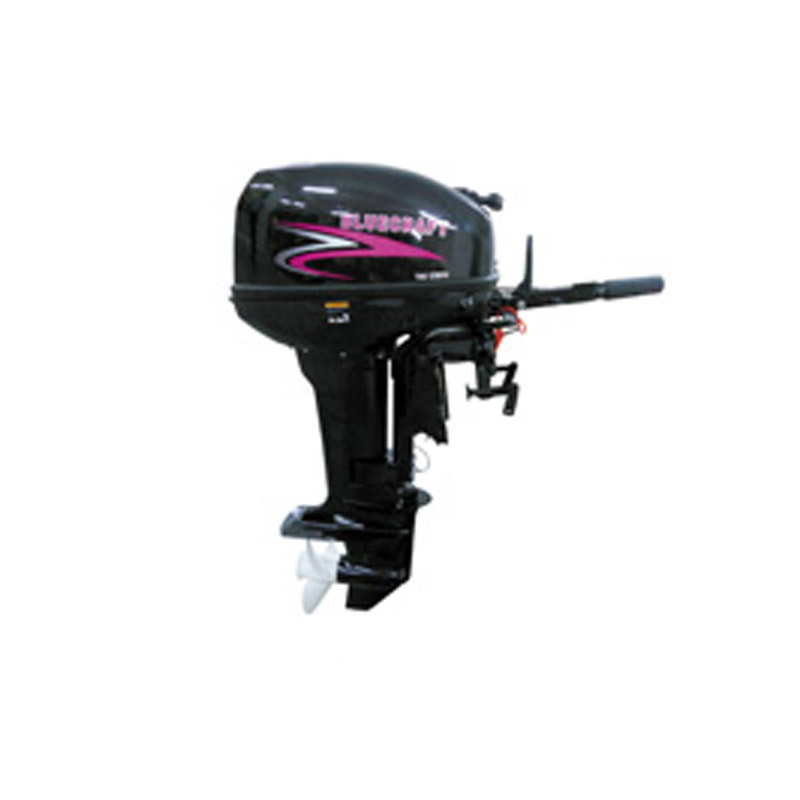

Bluecraft T15S

pdf

Category:
Model Bluecraft T15S
Length mm(in.) 873(34.4)
Width mm (in.) 332 (13.1)
Height mm (in.) 1040 (40.9)
Transom Height mm (in.) 440 (17.30)
Net Weight (kg) 36
Full throttle operating range (r/min) 4500-5500
Maximum output (kw(hp)@r/min) 11(15)@5000
Idling Speed (r/min) 700-800
Engine type 2-Stroke
Cylinder quatity L2
Displacement (cm³) 246
Bore x Stroke (mm (in.)) 56×50(2.20 x 1.97)
Control system Tiller
Starting system Manual
Gear positions Forward-neutral-reverse
Gear ratio 2.08(27/13)
Trim and tilt system Manual Tilt
Fuel tank volume (L) 24
Engine fuel ratio Gasoline : engine oil =50:1
Gear oil (cm³) 250
Propeller spec (in) 3-9 1/4″ or 3-9 1/4″ x 11″
