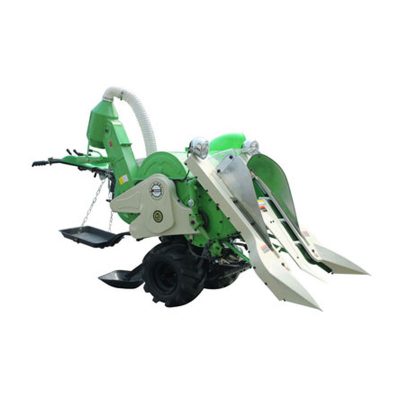

SR4LZ-0.3 Harvester

pdf

Category:
Engine Model SR177F
Engine Type 4-Stroke, Gasoline Engine
Displacement (ml) 270
Rated Output (kw) 5.6
Starting Type Manual/ Electric Start
Battery 7A Dry Battery
Fuel Tank Capacity (L) 6
Harvesting Type Full Feeding
Transmission Type Belt + Chain
Gearbox 2 Fwd. + 1 Rev
Clutch Type Belt Tensioning
Walking Type Wheel Type: ø420 x 230
Crawler Type W: 360mm / L: 750mm
Working Speed (km/h) Fwd,1:3.24; Fwd,2:2.52; Rev,3:1.8
Feeding Capacity (kg/s) 0.3
Harvesting Line 2
Cutting Stubble Height (mm) 150-300
Harvesting Rice Height (mm) 600-1200
Rice Lodging Front Side <= 75º / Back Side <= 65º
Loss Percentage <=3%
Breakage Percentage <=2%
Dirt Percentage <=7%
Working Efficiency (M2/h) 550-660
Head Light 2 x Led light
Body Dimension (mm) 2200 x 1300 x 1100
Packaging Dimension (mm) 2130 x 1120 x 1450
N.W / G.W (kg) Wheel Type 280/340
Packaging Crawler Type 340/400
Plywood Case
Loading Quantity
(20/40/40HQ)
5,11,11
