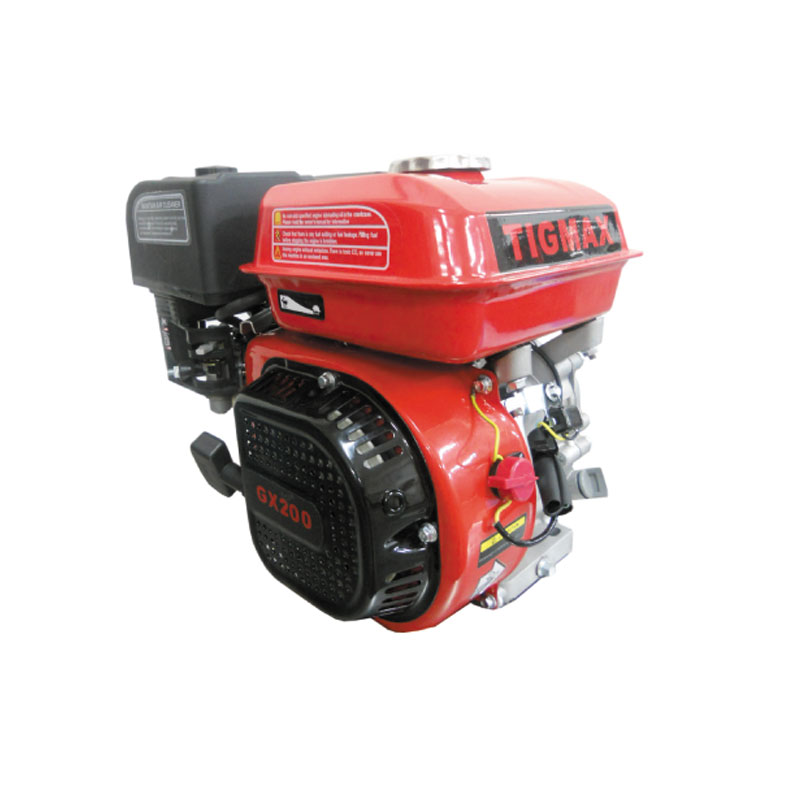

TIGMAX GX200-H Engine

pdf

Category:
Model GX200-H
Engine Model GX200 (6.5HP)
Bore x Stroke (mm) 68 x 45
Displacement (mL) 196
Compression Ratio 8.5:1
Max. TORQUE (n.m)/ (r/min) 11 / 2500
Max. Power (kW/r/min) 3.8 / 3600
Rated Power (kW/r/min) 2.8 / 3600
Ignition Type T.C.I
Starting Mode Recoil Start
Fuel Tank Capcity (L) 3.6
Engine Oil Capacity (L) 0.6
Fuel Consumption Rate (g/kw.h) <370
Net/ Gross Weight (KG) 16/17.5
