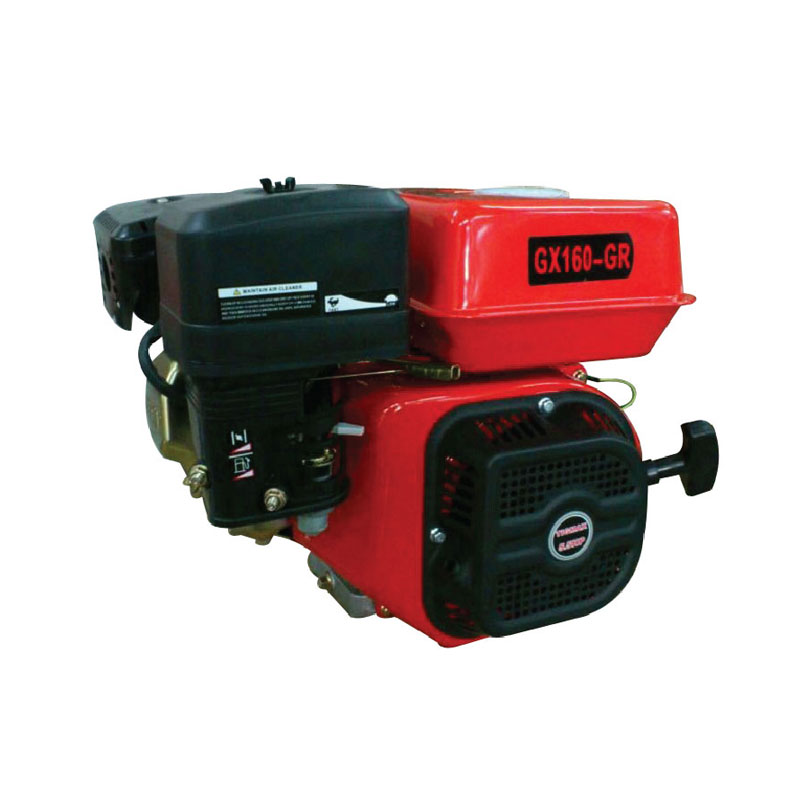

TIGMAX GX160-GR Engine

pdf

Category:
Model GX160-GR (5.5HP)
Bore x Stroke (mm) 68 x 45
Displacement (mL) 163
Compression Ratio 8.5:1
Rated Output (kw/r/min) 3.0 / 1800
Max. Output (kw/r/min) 3.2 / 1800
Max. TORQUE (n.m)/ (r/min) 9.0 / 2800
Fuel Capacity (L) 3.6
Starting System Recoil
Ignition System T.C.I
Oil Volume (L) 0.6
Oil Consumption <395
N.W (KG) 18
