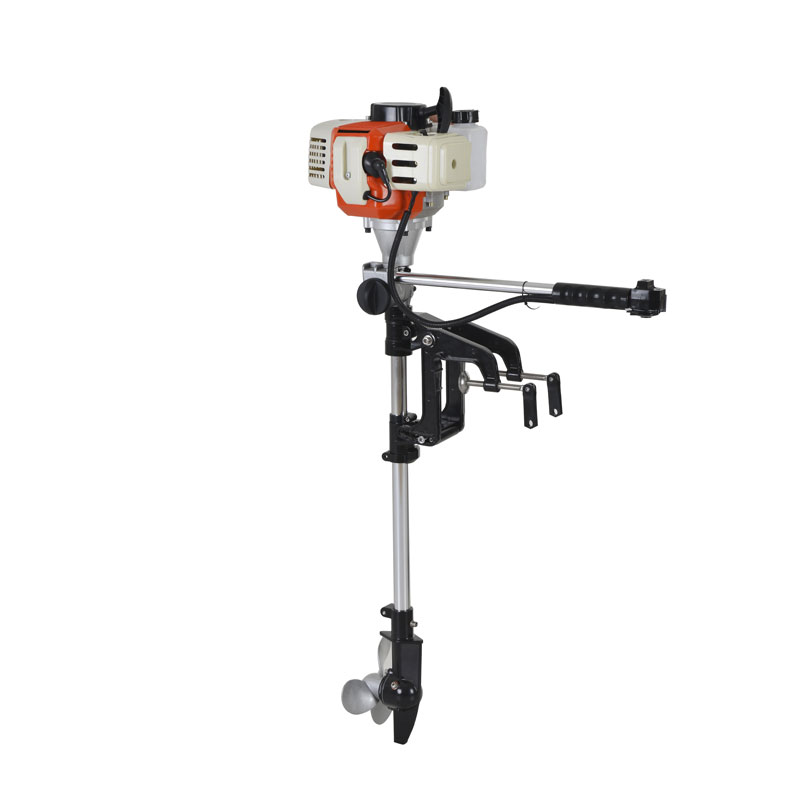

TF-OTE001 Outboard Engine

pdf

Category:
Engine Type: Twp Stroke Engine
Displacement: 52 cc
Maximum Output: 1.82 kw (2.5HP)
Fuel Throttle Operating Range: 5500-6500 r/min
Speed: 18-22km/h
Fuel Mixture: (Petrol) 25:1
Fuel Tank Capacity: 1.2L It can run 42 minutes with a full tank.
Gear Ratio: 27:13
Starting System: Recoil Start
Ignition System: Electronic CDI
Propeller Mark: 7 1/4″ x 5
Overall Lenght: 1025mm
Overall Width: 370mm
Overall Height: 265mm
Transom Height: 70mm
G.W/N.W: 10kgs/8.5kgs
Engine Carton: 330x230x280mm
Pole Carton: 940x160x210mm
