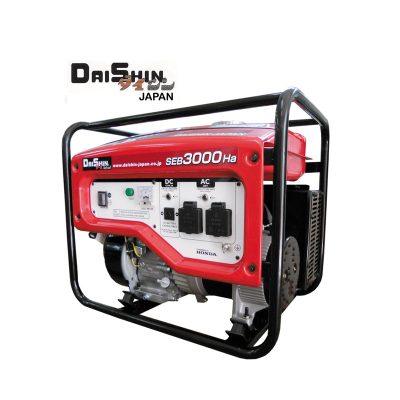

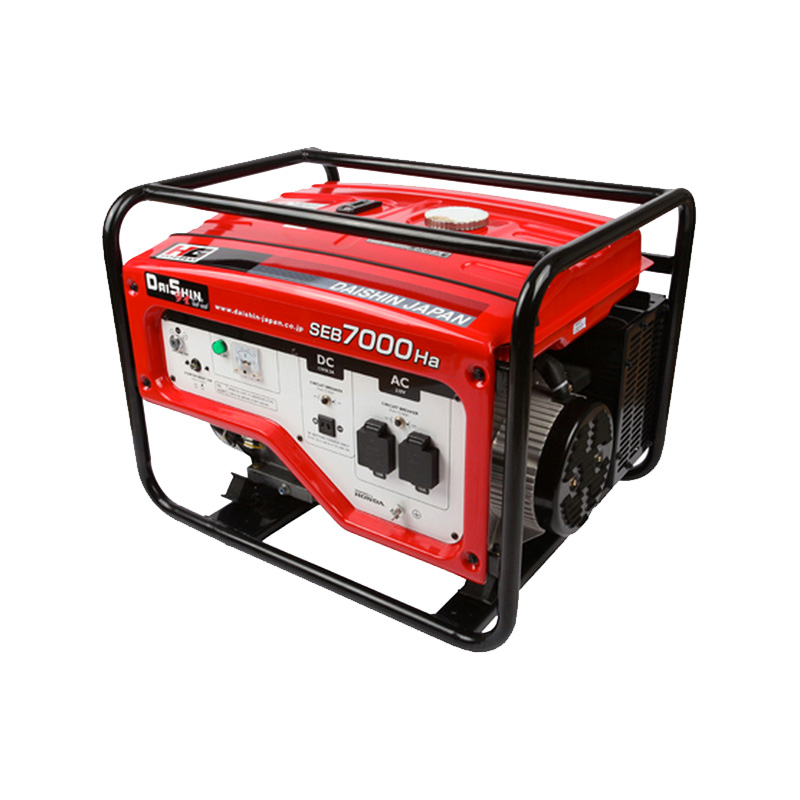

Model SEA3000Ha SEB3000Ha SEB6000Ha SEB6000HSa SEB7000Ha SEB7000HSa
ENGINE
Engine Brand Honda
Engine Model GX160 GX160 GX340 GX340 GX390 GX390
Displacement (cm³) 163 163 337 337 389 389
Max Output [kW(HP)/4000m¯¹] 4.0(5.5) 4.0(5.5) 8.1(11.0) 8.1(11.0) 9.6(13.0) 9.6(13.0)
Type Air Cooled, 4cycle, OHV Gasoline Engine
Oil Alert System N.A. Standard
Ignition System Transistor (C.D.I.)
Electric Start N.A. Standard N.A. Standard
GENERATOR
Alternator Self-Exciting, 2-Pole, Field Rotating Type, Single Phase
Voltage Regurator AVR
Phase Single
AC Max. Output (kVA) 50Hz 2.2 2.2 4.8 4.8 5.5 5.5
AC Max. Output (kVA) 60Hz 2.8 2.8 5.5 5.5 7.2 7.2
AC Rated Output (kVA) 50Hz 2.0 2.0 4.0 4.0 5.0 5.0
AC Rated Output (kVA) 60Hz 2.4 2.4 4.5 4.5 6.1 6.1
Rated Voltage 50Hz 220V
Rated Voltage 60Hz 110/220V
DC Output N.A. 12V-8.3A(Receptacle)
Rated Power Factor 1cos
OTHER Features
Pilot Lamp Standard (Except SEA3000Ha, 110/220V, 60Hz model)
Volt Meter N.A. Standard
Fuel Tank Capacity (l) 3.6 16 25
Continuos Operating Hours (hr:100%Load) 50Hz 3.5 14.1 10.1 10.1 9.0 9.0
Continuos Operating Hours (hr:100%Load) 60Hz 3.0 12.1 8.5 8.5 7.6 7.6
MEASUREMENT
Dimensions (mm/LxWxH) 545x415x405 595x414x495 685x534x509
Dry Weight (kg) 35.0 45.8 78.2 81.2 82.0 85.0
20Ft container Load 270 180 128
